10PCS Carbide Rotary Burr Set 6mm Shank For Metalworking
| MOQ: | 1 set |
| Price: | 20usd |
| Standard Packaging: | carton box |
| Delivery Period: | 7 days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 2000 set per month |
Detail Information
Place of Origin
Zigong China
Brand Name
ZWEIMENTOOL
Certification
ISO CE
Model Number
Carbide Rotary Burr 10pcs set
Highlight:
10PCS Carbide Rotary Burr Set
,Carbide Rotary Burr Set 6mm
,Metalworking Carbide Rotary Burr
Product Description

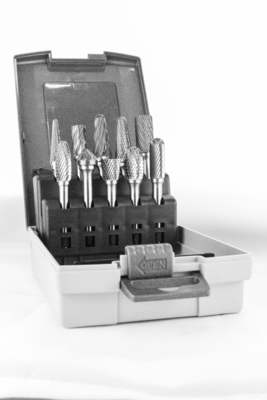

Professional 10-Piece Carbide Rotary Burr Set - Premium Quality in Convenient Case
Complete Carbide Burr Solution for All Metalworking Needs
Our 10-Piece Carbide Rotary Burr Set provides a comprehensive selection of premium cutting tools in one convenient, durable case. This professional-grade collection includes the most commonly used shapes and tooth configurations, offering exceptional value for machinists, fabricators, and metalworking professionals.
Key Features & Benefits
- Complete Selection - 10 essential shapes for all metalworking applications
- Premium Construction - Industrial-grade tungsten carbide heads with precision steel shanks
- Optimized Performance - Carefully selected tooth configurations for different materials
- Professional Storage - Durable plastic case with custom foam insert
- Exceptional Value - Save 20% compared to buying individual burrs
Technical Specifications
Cutting Head Composition
- Carbide Grade: K10 (YG8) per ISO 513 standards
- Hardness: 90-92 HRA (Rockwell A scale)
- Grain Structure: Sub-micron (0.5-0.8μm) tungsten carbide
- Cobalt Content: 6-8% for optimal toughness
Shank Specifications
- Material: AISI M2 high-speed steel
- Diameter: 6mm (1/4") - Standard industrial size
- Hardness: 62-64 HRC
- Surface Treatment: Precision ground with anti-corrosion coating
Included Burr Shapes & Configurations
| Shape Code | Description | Tooth Type | Best For | Included in Set |
|---|---|---|---|---|
| SA | Cylindrical with Ball End | Double-cut | Contouring & finishing | ✓ |
| SC | Cylindrical End Cut | Single-cut | Hard materials | ✓ |
| SD | Tapered Cone with Round End | Double-cut | Angled surfaces | ✓ |
| SE | Spherical (Ball) Shape | Double-cut | Complex curves | ✓ |
| SF | Tree Shape (Pointed Cone) | Single-cut | Narrow grooves | ✓ |
| SM | Oval/Egg Shape | Double-cut | Mold work | ✓ |
| CX | Countersink Shape | Double-cut | Chamfering | ✓ |
| FL | Flame Shape | Single-cut | Detail work | ✓ |
| AL | Aluminum-Specific | Special cut | Non-ferrous metals | ✓ |
| HC | Heavy-Cut | Aggressive cut | Rapid material removal | ✓ |
Tooth Configuration Guide
| Tooth Type | Characteristics | Recommended Materials | Surface Finish |
|---|---|---|---|
| Single-cut | Deep, aggressive teeth | Hardened steel, titanium | Rough (Ra 6.3-12.5μm) |
| Double-cut | Crossed teeth pattern | Mild steel, stainless | Medium (Ra 3.2-6.3μm) |
| Aluminum-cut | Wide flute spacing | Aluminum, copper, brass | Fine (Ra 1.6-3.2μm) |
Advanced Manufacturing Process
1. Material Preparation
- Precision blending of tungsten carbide and cobalt powders
- Isostatic pressing at 300 MPa
2. High-Temperature Sintering
- Vacuum sintering at 1420-1480°C
- Liquid phase sintering for maximum density
3. CNC Precision Grinding
- 5-axis CNC grinding with diamond wheels
- Tooth geometry accuracy: ±0.02mm
4. Quality Assurance
- 100% dimensional inspection
- Hardness testing on each production batch
- Dynamic balance testing
Frequently Asked Questions
Q: What makes this set better than individual burrs?
A: Our set offers complete compatibility (all 6mm shanks), balanced performance across shapes, and significant cost savings.
Q: Can I order replacement burrs from this set?
A: Yes, all individual burrs are available separately with the same high quality.
Q: What's the RPM rating for these burrs?
A: All burrs are rated for 15,000-35,000 RPM depending on size and application.
Q: Do you offer custom set configurations?
A: Absolutely! We can create custom sets with your preferred shapes and configurations.
Q: What's included in the storage case?
A: The durable plastic case features:
- Custom-cut foam inserts
- Shape identification labels
- Secure latch closure
- Stackable design
Shipping & Logistics
Shipping Options:
- Express: DHL/UPS (3-5 business days)
- Air Freight: 7-10 days
- Sea Freight: 30-45 days (ideal for bulk orders)
Order Information:
- MOQ: 10 sets
- Sample available (1 set minimum)
- OEM packaging available
- Volume discounts for 50+ sets
Why Choose Our Carbide Burr Set?
- Complete solution - All essential shapes in one purchase
- Consistent quality - Every burr meets strict tolerances
- Professional packaging - Durable case for shop or field use
- Cost effective - Significant savings versus individual purchase
- Trusted manufacturer - 15+ years carbide tool expertise
