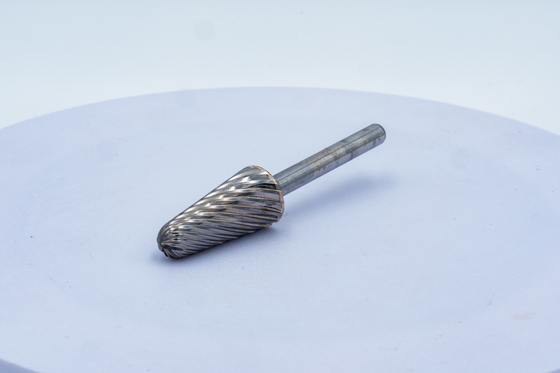

SL Shaped K50 Carbide Rotary Burr For Aluminium Deep Cavity Machining
| MOQ: | 10pcs |
| Price: | 4.5usd |
| Standard Packaging: | plastic case , carton box |
| Delivery Period: | 5-25days |
| Payment Method: | MoneyGram,Western Union,T/T,D/P,D/A,L/C |
| Supply Capacity: | 10000pcs per month |
Detail Information
Place of Origin
Zigong China
Brand Name
Zweimentool
Certification
ISO CE
Model Number
SL Shape Carbide Burr for Aluminium Cutting
Highlight:
SL Shaped Carbide Rotary Burr
,Aluminium Carbide Rotary Burr
,K50 Carbide rotary burrs for steel
Product Description
High-Performance SL-Shaped Carbide Rotary Burrs for Aluminium Cutting
Our SL-shaped carbide rotary burrs feature a specialized spherical long neck design, combining the reach of extended shank tools with the precision of ball-nose cutters. These burrs are engineered specifically for deep cavity machining, 3D contouring, and hard-to-reach areas in aluminium components.
Key Product Advantages
- Extended Reach Design - Long neck profile enables deep pocket machining (up to 5:1 L/D ratio)
- Anti-Galling Geometry - Proprietary flute pattern prevents aluminium adhesion
- Premium Materials - K50 micro-grain carbide with 42CrMoV alloy steel shank
- Automated Silver Brazing - Computer-controlled process ensures 100% joint integrity
- Aerospace-Grade Precision - Ground to tolerances of ±0.003mm for vibration-free operation
Technical Specifications & Materials
1. Cutting Head Composition
- Carbide Grade: K50 (94% WC, 6% Co)
- Hardness: HRA 93.5±0.3
- Grain Size: 0.3-0.5μm ultra-fine grain structure
- Brazing Technology: Fully automated silver brazing (56% Ag content)
2. Shank Specifications
- Material: 42CrMoV chrome-moly-vanadium alloy steel
- Heat Treatment: Vacuum hardened to HRC 60-62
- Runout: <0.002mm (DIN 8032 Class AA standard)
Advanced Manufacturing Process
- Material Preparation
- Laser-verified carbide blanks from German/Japanese suppliers
- Spectrometer-tested steel shanks with material certificates
- Precision Machining
- 6-axis CNC grinding with diamond wheel technology
- Automated optical inspection after each grinding stage
- Silver Brazing Process
- Robotic silver brazing at 720°C in controlled atmosphere
- X-ray inspection of every brazed joint
- Final Finishing
- Electrolytic polishing for ultra-smooth surface (Ra<0.2μm)
- Dynamic balancing to ISO 1940-1 G1.6 standard
Complete Product Line (SL Series)
| Model | Ball Dia. (mm) | Neck Length (mm) | Shank Size | Flute Type | Max RPM | Best For |
|---|---|---|---|---|---|---|
| SL-AL401 | 3 | 15 | 3mm (1/8") | Single Cut | 45,000 | Micro deep cavities |
| SL-AL402 | 4 | 20 | 3mm (1/8") | Single Cut | 40,000 | Precision molds |
| SL-AL403 | 6 | 25 | 6mm (1/4") | Single Cut | 35,000 | Aerospace components |
| SL-AL404 | 8 | 30 | 6mm (1/4") | Single Cut | 30,000 | Automotive dies |
| SL-AL405 | 10 | 35 | 6mm (1/4") | Single Cut | 28,000 | Large cavity work |
(Custom configurations available with MOQ 50pcs - ask about our rapid prototyping service)
Expert Application Guide
Optimal Cutting Parameters
- Speed: 20,000-35,000 RPM (based on diameter)
- Feed Rate: 0.04-0.12mm/tooth
- Cooling: Air blast mandatory for L/D >3:1
Why Global Manufacturers Choose Us
- 15 Years Specialization in deep-reach carbide tools
- Fully Automated Production with Industry 4.0 standards
- 100% X-ray Brazing Inspection for maximum reliability
- 48-Hour Sample Service with full test reports
- Onsite Technical Support available in EU/NA
Global Logistics Network
- Certifications: CE, RoHS, REACH compliant
- Export Packing: Climate-controlled for overseas shipping
- Lead Time: 7-15 days for standard orders
Ready to Revolutionize Your Deep Cavity Machining?
Please feel free to contact with us, live chat is available on our website
