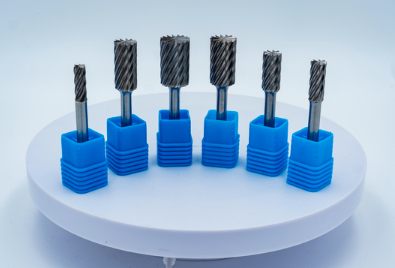

Carbide Burr Rotary File Bit YG11C YG15C Carbide Rotary File Grinding Tools
Detail Information
Place of Origin
china
Brand Name
guteke
Certification
90001
Product Name:
Carbide Burr Tree Shape
Sample:
Free Sample
Highlight:
Carbide Burr Rotary File Bit YG11C
,YG15C Carbide Rotary File
,YG11C Carbide Rotary File
Product Description
Tree Shape With Point End SG-5F/G Shape Carbide Rotary File Grinding Tools
Product Details
- Product name: Carbide burr tree shape
- Sample availability: Free sample available
Product Overview
- Material: 100% premium raw materials
- Tolerance: Strict control up to ±0.01mm
- Available grades: YG6, YG8, YG8C, YG11C, YG15C and more
- Types: Standard, conical, parabolic, ballistic
- Physical properties: High hardness, excellent impact toughness, superior mechanical & chemical stability
American Standard Specifications
| Tool No. | Cutter Diameter | Length of Cut | Shank Diameter | Double Cut No. | Single Cut No. | Nonferrous Cut No. |
|---|---|---|---|---|---|---|
| SC-61 | 3/32 | 3/8 | 3/32 | C1001 | C2001 | |
| SC-41 | 3/32 | 7/16 | 1/8 | C1002 | C2002 | |
| SC-11 | 1/8 | 1/2 | 1/4 | C1003 | C2003 | |
| SC-42 | 1/8 | 9/16 | 1/8 | C1004 | C2004 | |
| SC-42L2 | 1/8 | 9/16 | 1/8 | C1005 | C2005 | |
| SC-42L3 | 1/8 | 9/16 | 1/8 | C1006 | C2006 | |
| SC-12 | 1/8 | 5/8 | 1/8 | C1007 | C2007 | |
| SC-52 | 5/32 | 1/2 | 1/4 | C1008 | C2008 | |
| SC-13 | 5/32 | 5/8 | 1/8 | C1009 | C2009 | |
| SC-81 | 3/16 | 1/2 | 3/16 | C1010 | C2010 |
Applications
Tungsten carbide burrs are versatile tools with extensive applications in:
- Shipbuilding
- Auto engine porting
- Foundry fabrication
These tools operate efficiently at high rotation speeds and can machine various materials including cast iron, carbon steel, alloy steel, and non-ferrous metals. The product lifespan depends on raw material quality, and we use only the highest-grade materials to ensure maximum durability.
