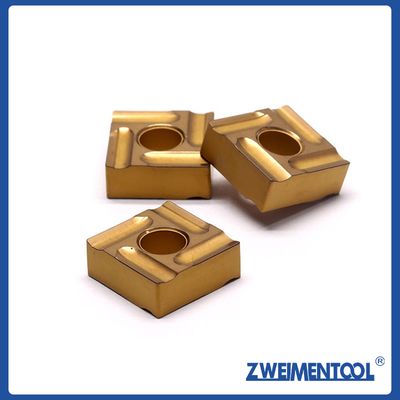

SNMG160408 SNMG160416 SNMG Inserts Heavy Duty Turning CNC Inserts
| MOQ: | 10pcs |
| Price: | 1.28-3.56usd |
| Standard Packaging: | plastic box carton box |
| Delivery Period: | 7-20days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 10000pcs per month |
Detail Information
Place of Origin
Zigong China
Brand Name
Zweimentool
Certification
ISO CE
Model Number
SNMG120404
Highlight:
SNMG160416 SNMG Inserts
,SNMG160408 SNMG Inserts
,Heavy Duty Turning CNC Inserts
Product Description
SNMG Series Carbide Inserts | High-Performance Negative Rake Turning Tools
Premium SNMG Indexable Inserts for Heavy-Duty Machining
ZWEIMENTOOL SNMG series carbide inserts provide exceptional stability and cost efficiency for heavy roughing and general turning applications. These square-shaped negative rake inserts offer 8 cutting edges and are available with multiple advanced coatings to maximize tool life across various materials.
Key Product Benefits:
- 8 cutting edges per insert - Industry-leading economy
- Negative rake geometry - Superior edge strength for interrupted cuts
- Multiple coating options - Optimized for different material groups
- Precision-ground surfaces - Ensuring consistent performance (±0.005mm)
- Wide range of nose radii - From 0.4mm to 1.6mm
Technical Specifications
1. SNMG Insert Dimensions (ISO Standard)
| Insert Code | IC (mm) | Thickness (mm) | Nose Radius (mm) | Hole Size (mm) | Edge Length (mm) |
|---|---|---|---|---|---|
| SNMG120408 | 12.70 | 4.76 | 0.8 | 4.78 | 12.70 |
| SNMG120412 | 12.70 | 4.76 | 1.2 | 4.78 | 12.70 |
| SNMG160408 | 15.875 | 6.35 | 0.8 | 6.35 | 15.875 |
| SNMG160416 | 15.875 | 6.35 | 1.6 | 6.35 | 15.875 |
2. Material Grades & Applications
| Grade Code | Substrate | Coating | Hardness (HV) | Best For | Working Temperature |
|---|---|---|---|---|---|
| SN-800 | Ultra-fine WC+Co | TiAlN | 3200 | Carbon steels | Up to 800°C |
| SN-850 | Nano-grade WC+Co | AlTiN | 3500 | Hardened steels | Up to 900°C |
| SN-700 | WC-TiC-TaC | TiCN | 3000 | Stainless steel | Up to 400°C |
| SN-600 | Submicron WC | DLC | 2500 | Aluminum alloys | Up to 500°C |
| SN-500 | WC+Ni binder | None | - | High-temp alloys | - |
3. Coating Performance Comparison
| Coating | Thickness | Color | Friction Coeff. | Wear Resistance | Best Applications |
|---|---|---|---|---|---|
| TiAlN | 2-3μm | Purple | 0.4 | Excellent | General turning |
| AlTiN | 3-4μm | Black | 0.35 | Outstanding | Hard machining |
| TiCN | 3-5μm | Gold | 0.5 | Very Good | Stainless steel |
| DLC | 1-2μm | Gray | 0.2 | Good | Non-ferrous |
| Uncoated | - | Silver | 0.6 | Fair | Composites |
Recommended Cutting Parameters
| Material | Speed (m/min) | Feed (mm/rev) | Depth of Cut (mm) | Application |
|---|---|---|---|---|
| Low C Steel | 180-280 | 0.20-0.35 | 2.0-6.0 | Roughing |
| Alloy Steel | 120-200 | 0.15-0.25 | 1.5-4.0 | General |
| Stainless | 80-150 | 0.10-0.20 | 1.0-3.0 | Finishing |
| Cast Iron | 150-250 | 0.25-0.40 | 2.0-8.0 | Heavy roughing |
| Titanium | 50-100 | 0.08-0.15 | 0.8-2.0 | Aerospace |
Unique Product Features
1. Enhanced Negative Rake Design
- 5° negative rake angle for maximum edge strength
- Superior performance in interrupted cuts
- 30% higher depth of cut capacity than positive rake inserts
2. Advanced Chipbreaker Options
- Three specialized geometries:
- HR (Heavy Roughing)
- MR (Medium Roughing)
- MF (Medium Finishing)
- Optimized chip control across all feed ranges
3. Precision Manufacturing
- German-made CNC grinding machines
- ±0.005mm dimensional tolerance
- Mirror finish on critical surfaces (Ra 0.1μm)
Quality Assurance
- ISO 9001:2015 Certified manufacturing facility
- 100% dimensional inspection with optical comparators
- Material certification for each production batch
- Performance testing on various material groups
Why Choose ZWEIMENTOOL SNMG Inserts?
15+ years of carbide tool manufacturing expertise
Top raw materials for consistent quality
Custom solutions available (special geometries/coatings)
Global inventory with fast delivery (3-5 working days)
Technical support for optimal insert selection
