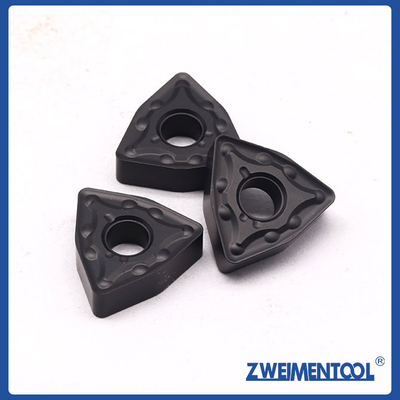

WNMG060408 WNMG080408 WNMG Carbide Inserts WNMG120408 WNMG160612
| MOQ: | 10pcs |
| Price: | 1.25-3.68usd |
| Standard Packaging: | plastic box , carton box |
| Delivery Period: | 7-20days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 10000pcs per month |
Detail Information
Place of Origin
Zigong China
Brand Name
Zweimentool
Certification
ISO CE
Model Number
WNMG080412
Highlight:
WNMG080408 WNMG Carbide Inserts
,WNMG060408 WNMG Carbide Inserts
,WNMG Carbide Inserts WNMG120408
Product Description
WNMG Series Carbide Inserts | High-Performance CNC Turning Tools
ZWEIMENTOOL WNMG series carbide inserts represent the pinnacle of negative rake turning technology, offering exceptional durability and cost efficiency for various machining operations. These 80° rhomboid-shaped inserts feature 6 cutting edges and are available with multiple coating options to suit different material requirements.
Key Product Advantages
- 6 cutting edges per insert - Maximizing tool economy
- Multiple coating options - Optimized for different materials
- Negative rake geometry - Superior edge strength for heavy cuts
- Precision-ground surfaces - Ensuring consistent performance
- Wide range of nose radii - From 0.4mm to 1.2mm
Technical Specifications
1. WNMG Insert Dimensions (ISO Standard)
| Insert Code | IC (mm) | Thickness (mm) | Nose Radius (mm) | Hole Size (mm) | Edge Length (mm) |
|---|---|---|---|---|---|
| WNMG060408 | 6.35 | 3.97 | 0.8 | 2.50 | 6.35 |
| WNMG080408 | 8.00 | 4.76 | 0.8 | 3.30 | 8.00 |
| WNMG120408 | 12.70 | 4.76 | 0.8 | 4.78 | 12.70 |
| WNMG160612 | 15.875 | 6.35 | 1.2 | 6.35 | 15.875 |
2. Material Grades & Applications
| Grade Code | Substrate Composition | Coating | Hardness (HV) | Best Applications |
|---|---|---|---|---|
| WN-2000 | Ultra-fine WC+6%Co | TiAlN | 3200 | General steel machining |
| WN-2500 | Nano-grade WC+8%Co | AlTiN | 3500 | Hardened steels (>45HRC) |
| WN-3000 | WC-TiC-TaC composite | TiCN | 3000 | Stainless steel |
| WN-3500 | Submicron WC | DLC | 2500 | Aluminum alloys |
| WN-4000 | WC+Ni binder | Uncoated | - | High-temperature alloys |
3. Coating Performance Comparison
| Coating Type | Thickness (μm) | Max Temp (°C) | Friction Coefficient | Color | Best For |
|---|---|---|---|---|---|
| TiAlN | 2-3 | 800 | 0.4 | Purple | General turning |
| AlTiN | 3-4 | 900 | 0.35 | Black | Hard machining |
| TiCN | 3-5 | 400 | 0.5 | Gold | Stainless steel |
| DLC | 1-2 | 500 | 0.2 | Gray | Non-ferrous |
| Uncoated | - | - | 0.6 | Silver | Composites |
Recommended Cutting Parameters
| Material Group | Cutting Speed (m/min) | Feed Rate (mm/rev) | Depth of Cut (mm) |
|---|---|---|---|
| Carbon Steel | 120-280 | 0.15-0.35 | 1.0-5.0 |
| Alloy Steel | 100-220 | 0.12-0.25 | 0.8-3.0 |
| Stainless Steel | 80-160 | 0.10-0.20 | 0.5-2.5 |
| Cast Iron | 150-300 | 0.18-0.40 | 1.5-6.0 |
| Titanium | 50-120 | 0.08-0.15 | 0.5-1.5 |
Unique Product Features
1. Advanced Negative Rake Design
- 5° negative rake angle for superior edge strength
- Allows heavier cuts than positive rake inserts
- Improved stability in interrupted cuts
2. Optimized Chipbreaker Technology
- Three chipbreaker options available:
- F-type for finishing
- M-type for medium machining
- R-type for roughing
- Effective chip control across various feed rates
3. Precision Edge Preparation
- Honed edge radii (20-50μm)
- T-land edge strengthening
- Improved edge durability by 30-40%
Quality Assurance
- ISO 9001:2015 Certified manufacturing process
- 100% dimensional inspection with optical measurement
- Batch traceability with unique identification codes
- Performance testing on various material groups
Why Choose ZWEIMENTOOL WNMG Inserts?
- German-engineered CNC grinding technology (±0.005mm)
- Top carbide substrates for consistent quality
- Custom solutions available (special geometries/coatings)
- Global inventory for fast delivery (2-5 working days)
- Technical support for application optimization
