Customizable 5 Piece Carbide Rotary Burr Set 5pcs 3mm Carbide Burr
| MOQ: | 5 sets |
| Price: | 25usd |
| Standard Packaging: | plastic case , carton box |
| Delivery Period: | within 25 days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 1000sets per month |
Detail Information
Place of Origin
Zigong China
Brand Name
Zeimentool
Certification
ISO CE
Model Number
Carbide Rotary Burr 5pcs Set
Highlight:
5 Piece Carbide Rotary Burr
,Customizable Carbide Rotary Burr Set
,5pcs 3mm carbide burr
Product Description

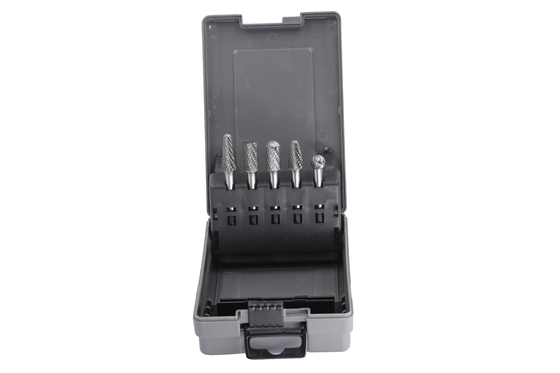

Customizable 5-Piece Carbide Rotary Burr Set - Precision Cutting Solutions
Our 5-Piece Customizable Carbide Rotary Burr Set offers manufacturers and metalworkers the flexibility to build their ideal toolkit. Choose from our recommended professional combinations or select individual shapes to create your perfect set - all housed in a durable, professional case.
Key Advantages of Our Customizable Set
- Build-Your-Own Flexibility - Select any 5 shapes from our full catalog
- Premium Tungsten Carbide - Industrial-grade K10 material for maximum durability
- Precision Engineered - Computer-balanced for vibration-free operation
- Professional Organization - Durable case with custom foam inserts
- Cost-Effective Solution - Save 15-20% versus individual purchases
Technical Specifications
Cutting Head Composition
- Carbide Grade: K10 (YG8) per ISO 513 standards
- Hardness: 90-92 HRA (Rockwell A scale)
- Grain Size: 0.5-0.8μm tungsten carbide particles
- Density: ≥14.8 g/cm³
- Cobalt Content: 6-8% for optimal toughness
Shank Specifications
- Material: AISI M2 high-speed steel
- Diameter Options: 3mm (1/8") or 6mm (1/4")
- Hardness: 62-64 HRC
- Surface Treatment: Precision ground with anti-corrosion coating
Recommended Professional Combinations
| Set Type | Ideal For | Included Shapes |
|---|---|---|
| General Metalworking | Steel fabrication | SC, SA, SD, SE, CX |
| Aluminum Specialist | Aerospace/auto | AL, SA, SC, SM, HC |
| Hard Material | Tool & die work | SC, SF, HC, SD, SE |
| Detail Finishing | Precision work | SA, SE, SM, CX, AL |
| Custom Selection | Your specific needs | Choose any 5 shapes |
Available Shape Options
| Shape Code | Description | Tooth Options | Best For |
|---|---|---|---|
| SA | Ball Nose Cylinder | Single/Double | Contouring |
| SC | Straight Cylinder | Single/Double | General purpose |
| SD | Tapered Cone | Single/Double | Angled surfaces |
| SE | Spherical Ball | Double | 3D surfaces |
| SF | Tree Shape | Single | Grooves |
| CX | Countersink | Double | Chamfering |
| AL | Aluminum Cut | Special | Non-ferrous |
| HC | Heavy Cut | Aggressive | Fast removal |
| SM | Oval Shape | Double | Mold work |
| FL | Flame Shape | Single | Detail work |
Tooth Configuration Guide
| Tooth Type | Characteristics | Best Materials | Surface Finish |
|---|---|---|---|
| Single-cut | Deep, aggressive | Hardened steels | Rough (Ra 6.3-12.5μm) |
| Double-cut | Crossed pattern | Mild steel, SS | Medium (Ra 3.2-6.3μm) |
| Aluminum-cut | Wide flute spacing | Aluminum, copper | Fine (Ra 1.6-3.2μm) |
Precision Manufacturing Process
1. Material Preparation
- Computer-controlled WC-Co powder blending
- Cold isostatic pressing at 300MPa
2. High-Temperature Processing
- Vacuum sintering at 1420-1480°C
- Liquid phase densification
3. CNC Precision Machining
- 5-axis CNC grinding with diamond wheels
- Tooth geometry accuracy: ±0.02mm
4. Quality Verification
- 100% dimensional inspection (CMM)
- Hardness testing (Rockwell scale)
- Dynamic balance testing ≤0.5g/mm
Frequently Asked Questions
Q: How does the customization process work?
A: Simply select any 5 shapes during checkout, or choose one of our recommended sets. Need help? Our engineers can recommend optimal combinations.
Q: Can I mix different shank sizes in one set?
A: Yes, we can accommodate mixed 3mm and 6mm shanks in custom sets.
Q: What's the lead time for custom sets?
A: Standard combinations ship in 2-3 days. Fully custom sets require 5-7 business days.
Q: Do you offer branded cases for salons?
A: Yes! We provide custom laser-engraved cases with your logo (MOQ 50 sets).
Q: What's your warranty policy?
A: We offer a 12-month warranty against manufacturing defects with proper use.
Packaging & Shipping
Shipping Options:
- Express: DHL/FedEx (3-5 days)
- Air Freight: 7-10 days
- Sea Freight: 30-45 days (ideal for bulk)
Order Information:
- MOQ: 10 sets
- Free samples available (1 set)
- OEM packaging available
Why Professionals Choose Our Sets
Tailored solutions - Build your perfect combination
Consistent quality - Every burr meets exacting standards
Professional packaging - Durable case with custom foam
Cost effective - Significant savings versus individual purchase
Trusted source - 15+ years carbide tool expertise
