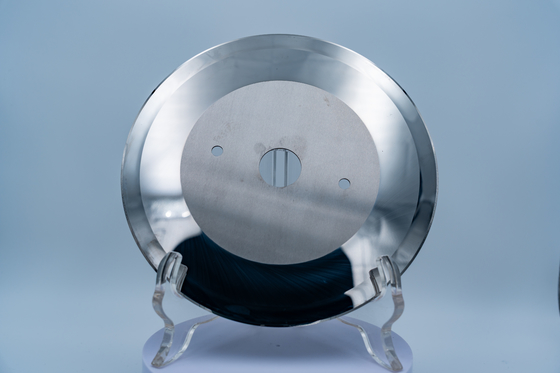

BHS Tungsten Carbide Circular Slitter Blades Corrugated Paper Slitting Knives
| MOQ: | 1PCS |
| Price: | 52USD |
| Standard Packaging: | Carton box |
| Delivery Period: | 5-25days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 1000 Per Month |
Detail Information
Place of Origin
ZIGONG CHINA
Brand Name
Zweimentool
Certification
ISO CE
Model Number
BHS Corrugated Paper Slitting Knives
Highlight:
Tungsten Carbide Circular Slitter Blades
,BHS Circular Slitter Blades
,Corrugated Paper Slitting Knives
Product Description
Premium Tungsten Carbide Corrugated Paper Cutting Blades (BHS Standard)
Industrial-Grade Cutting Solutions for Corrugated Board Production
Our tungsten carbide BHS standard cutting blades are precision-engineered for high-speed corrugated paper processing, offering 3-5 times longer service life than conventional steel blades. Manufactured to exact BHS specifications, these blades deliver ultra-clean cuts while maintaining consistent performance in 24/7 production environments.
Key Product Advantages
- Extended Service Life - K10/K20 carbide grades provide superior wear resistance
- Precision Ground - Cutting angles optimized for fiberboard applications
- German Technology - Produced using European-standard CNC grinding equipment
- Custom Solutions - Available in all BHS/KBA/Goebel compatible sizes
- Proven Performance - Trusted by leading packaging manufacturers worldwide
Technical Specifications & Materials
1. Blade Composition
| Component | Specification | Benefit |
|---|---|---|
| Carbide Grade | K10/K20 (92% WC, 8% Co) | Optimal balance of hardness & toughness |
| Hardness | HRA 90.5±0.5 | Resists abrasive paper fibers |
| Grain Size | 0.6-1.0μm | Controlled microstructure |
| Surface Finish | Ra 0.1μm (mirror polish) | Reduced friction |
2. Mechanical Properties
- Transverse Rupture Strength: ≥3,800 N/mm²
- Density: 14.6-14.9 g/cm³
- Thermal Stability: Up to 600°C continuous operation
Precision Manufacturing Process
- Material Preparation
- ISO-certified K10/K20 carbide blanks
- Ultrasonic testing for micro-crack detection
- CNC Precision Grinding
- 5-axis CNC grinding with diamond wheels
- Automated angle measurement (±0.05° tolerance)
- Quality Verification
- 100% edge inspection with digital microscopy
- Runout testing <0.003mm
- Final Treatment
- Diamond polishing for razor-sharp edges
- Laser marking for traceability
Product Range (BHS Standard Blades)
| Model | Diameter (mm) | Bore Size (mm) | Thickness (mm) | Cutting Angle | Compatible Machines |
|---|---|---|---|---|---|
| CB-BH401 | 180 | 60 | 2.0 | 30° | BHS 2.2m-2.8m |
| CB-BH402 | 220 | 80 | 2.5 | 28° | BHS 2.5m-3.2m |
| CB-BH403 | 250 | 100 | 3.0 | 25° | BHS 3.0m+ |
| CB-BH404 | 300 | 120 | 3.5 | 22° | Heavy-duty applications |
| CB-BH405 | Custom | Custom | Custom | Custom | Special configurations |
(All standard sizes available from stock - custom diameters/thicknesses with 15-day lead time)
Expert Application Guide
Optimal Operating Parameters
- Cutting Speed: 100-150 m/min
- Board Weight: 100-500 g/m²
- Re-sharpening Interval: Every 8-12M linear meters
Troubleshooting Common Issues
- Problem: Premature edge chipping
Solution: Verify proper blade alignment and board feed system - Problem: Excessive dust generation
Solution: Adjust cutting angle by 1-2° and check blade sharpness - Problem: Irregular cuts
Solution: Inspect for bearing play in shaft assembly
Why Choose Our BHS Blades?
- 15+ Years Specialization in corrugated board cutting tools
- German Grinding Technology for superior edge quality
- Complete Material Traceability with mill certificates
- 48-Hour Sample Service for qualified buyers
- Global Technical Support from our blade specialists
Global Logistics & Support
- Certifications: CE, ISO 9001:2015
- Export Packing: Shock-proof cases with humidity control
- Lead Time: 7 days for standard sizes
Ready to Upgrade Your Cutting Performance?
Please feel free to contact us via email or live chat on our website.
